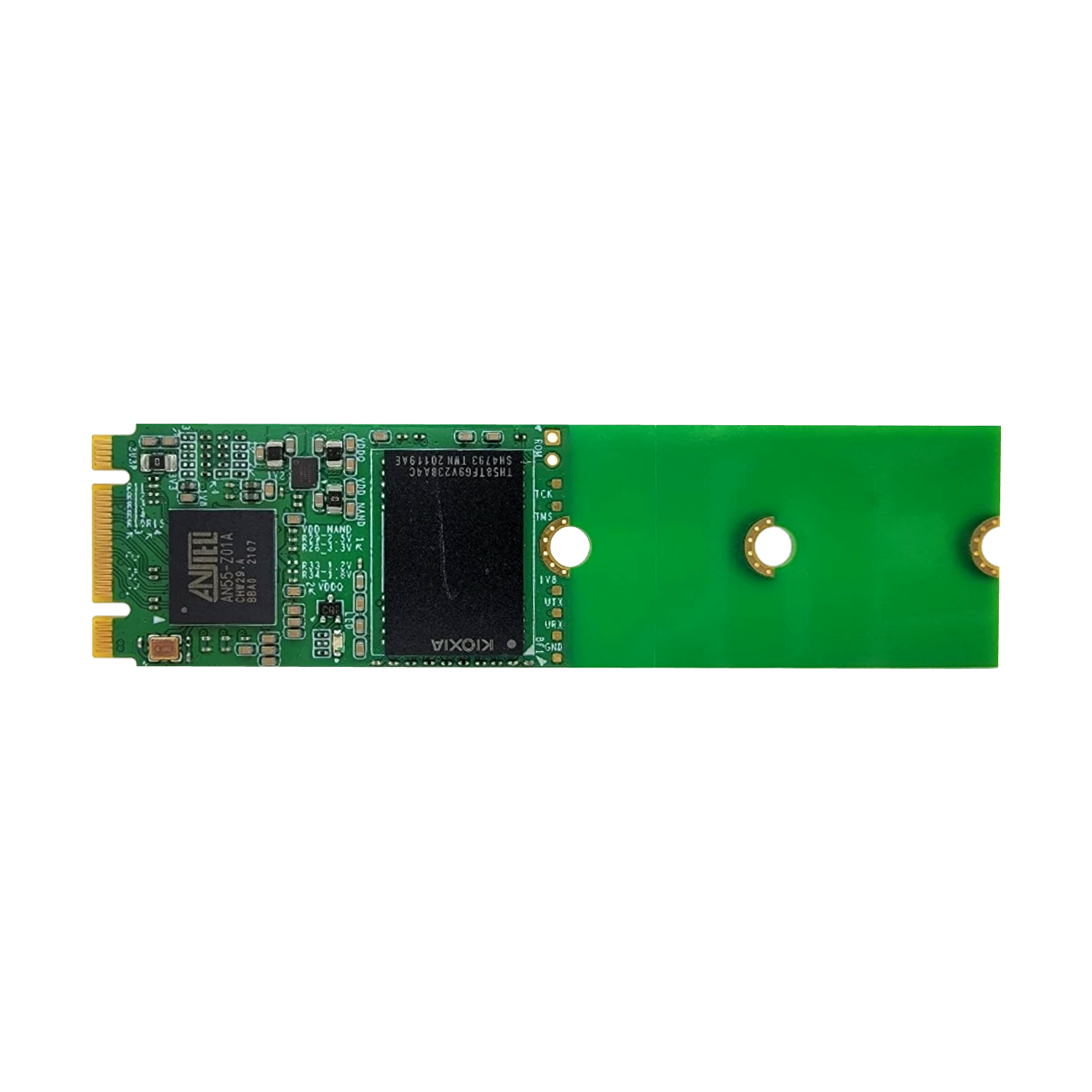

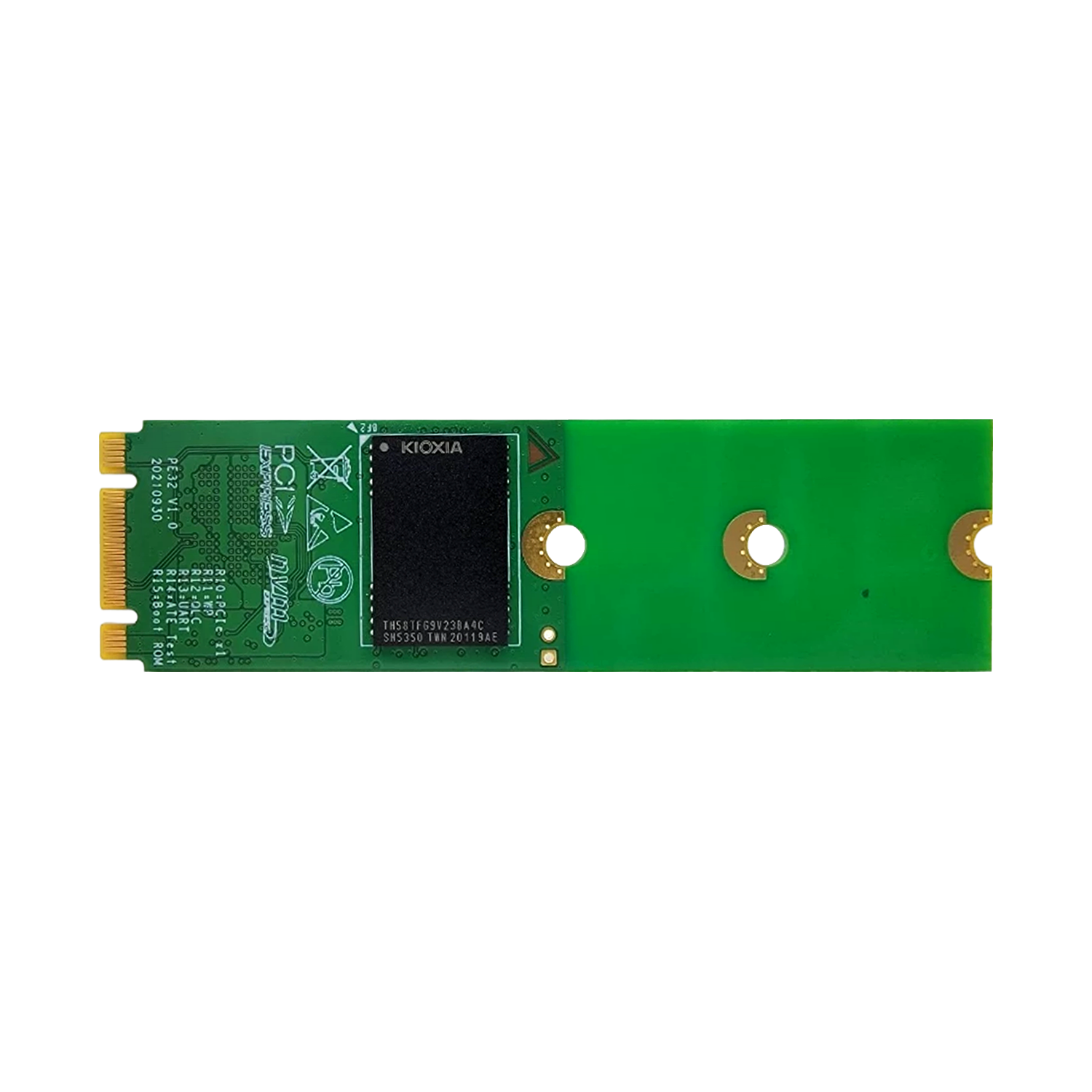

PE32 2280
视频介绍 >>
Scroll
详细介绍
下载 PDF
视频介绍
| product name | Industrial M.2 NVMe SSD |
| series | Reliable Series |
| product name | PE32 |
| capacity | 3D TLC: 128GB~1TB |
| characteristic | * PCIe Gen.III X2 interface * 支持 S.M.A.R.T * P/E：3D TLC(3000) * 支持HMB无dram架构 * 先进的 2K LDPC (ECC) 机制 * 支持NVME 1.3标准 |
| Vibration/shock | 1500/20 |
| MTBF(h) | 2,000,000 |
| working voltage | 3.3V |
| operation temperature | 常温：0℃ ~ 70 ℃ 宽温：-40 ℃~85 ℃ |
| storage temperature | -55℃ ~95℃ |
| Sequential R/W (Max) | 读：1750MB/S 写：1500M/S |
| Size (LxWxH) | 22mm(W)x42/80mm(L)x3.5mm(H) |
